Modulated Power Supply can be used to form a high-voltage signal generator.

Function Generator Selection Guide

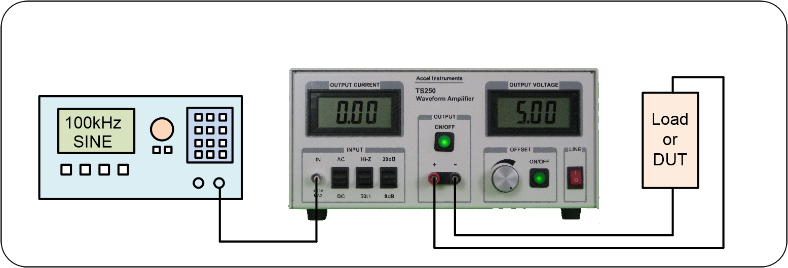

Figure 1. Function generator is connected to the TS250 Waveform Amplifier.

Function Generator Amplifier Connection

Amplifier connection make a high-voltage function generator.

Function Generator

Table 2. High-Voltage Signal Generator Amp Selection Guide

Model

Voltage Range

DC Current

Max Peak Current

TS200-0A/B

-10V to + 10V

 0 – 4.0A

 0 – 5.0A

TS200-1B

-20V to + 20V

0 – 2.8A

0 – 3.8A

TS200-4A/B

0V to + 15V

0 – 3.5A

0 – 4.5A

TS250-0

-10V to + 10V

0 – 5.0A

 0 – 6.0A

TS250-1

-20V to + 20V

0 – 3.1A

0 – 4.4A

TS250-2

-30V to + 30V

0 – 2.1A

0 – 3.0A

TS250-3

-40V to + 40V

0 – 1.7A

0 – 2.5A

TS250-4

-6V to + 15V

0 – 4.0A

 0 – 5.0A

TS250-5

-6V to + 30V

0 – 2.1A

0 – 3.0A

TS250-6

-6V to + 45V

0 – 1.7A

0 – 2.5A

TS250-7

-6V to + 65V

0 – 2.1A

0 – 2.5A

Related App Notes

High Current Amplifier and Driver

Piezo Amplifier

Visit TS200 Product Page

TS250 vs. TS200

Visit TS250 Product Page

Ask Us Questions

Request a Quote

Quick links to our products

Copyright: Function generator selection guide for amplifiers

TS250 Price List

TS200 Price List

Our amplifier products are designed to interface with function generators. Other generators such signal generator, waveform generator, and arbitrary waveform generator will work with our products. Our high-voltage waveform amplifiers input uses BNC female connectors. Standard 50-ohm coaxial cable can be connect from the function generator to our amplifier. Table 1 shows a few recommended function/waveform generators.

Manufacture

Model

Features

Rigol

DG1022

Low-cost

BK Precision

4014B

Low-cost

Keysight

33220A

20MHz

Keysight

33250A

Variable slew-rate control

Tektronix

AFG1000


Table 1. Function Generator Selection Guide

For Our Amplifier-Related Products

High-voltage function generator by boosting voltage signal.
