Instruments For Testing Your Innovations

• High Frequency (DC to 10MHz)

• High Current (-5A to + 5A)

• Voltage Ranges

        -10V to +10V

        -15V to +15V

        0V to +15V

        0V to +30V

TS400 Wideband Power Amplifier

Subject to change without notice.

Applications

• High-frequency, high-current power amplifier

• Impedance measurement

• Magnetic probes and coils

• University and R&D labs

• PSRR/CMRR measurement

• General lab amplifier

Features

Feature Products

TS250 Waveform Amplifier

TS250 Waveform Amplifier

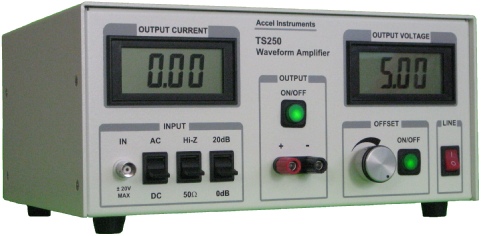

The TS250 Waveform Amplifier is a one of a king instrument perfect for amplifying signal generators. It is designed to amplify voltage, power or current for while driving heavy (low ohmic) loads. The TS250 offers eight voltage ranges to choose from ±10V to +65V. The TS250 output up to 6A peak current. To obtain higher current, parallel connect two or more TS250 in as shown in the Application Section.

TS250 Waveform Amplifier

Visit Product Page

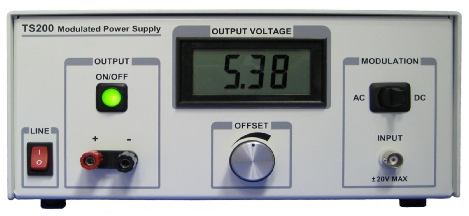

The TS200 Modulated Power Supply is a unique equipment for many lab test and measurement applications. It combines a four-quadrant power supply and a high-current power amplifier. The TS200 is great for measuring application include battery simulator, LDO PSRR measurement, piezo driver, signal generator amplifier, lab power amplifier, transient response test, and more.

TS200 Modulated Power Supply

Visit Product Page

Datasheet (PDF)

Datasheet
